|Name:||Printer Slotter Machine||Application:||Corrugated Carton Box Printing Slotting|
|Max Feeding:||1200*2500mm||Min Feeding:||400*720mm|
|Speed:||250pcs/min||Printing Type:||Top Printing|
flexo printer slotter machine,
corrugated flexo printing machine

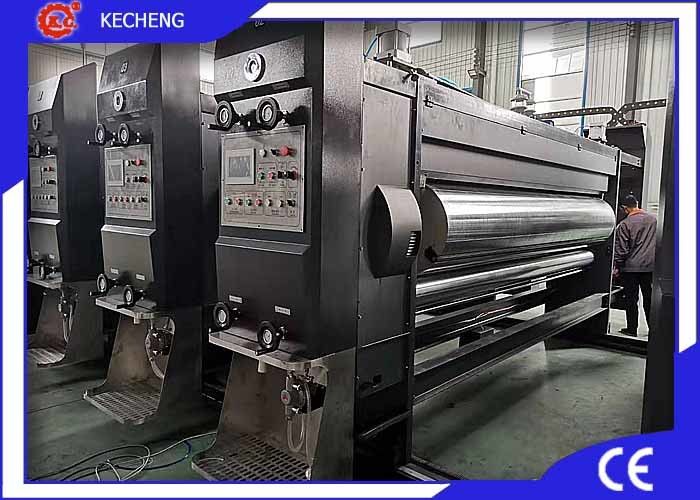

4 color Printer Slotter Machine / Flexo Corrugated Machine Cardboard Top Printing
All the gears are made of 20 CrMnTi ,undergoes quenched and precise grinded for good printing and long life service
All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification
Bearing has HRB,NTN,NSK for option
|Model||KC-H 920||KC-H 924||KC-H1224||KC-H1628||KC-H1632|
|Max feeding size||900*2100mm||900*2500mm||1200*2500mm||1600*2900mm||1600*3300mm|
|Min feeding size||300*650mm||300*650mm||400*720mm||450*750mm||450*750mm|
|Max printing size||880*1000mm||880*2400mm||1150*2400mm||1550*2800mm||1550*3200mm|
|Skip feeding size||1100*2100mm||1100*2500||1400*2500mm||1800*2900mm||1800*3300mm|
|Min slotting gap||250*70*250*70m||250*70*250*70mm||270*80*260*80mm||280*100*280*100mm||280*100*280*100mm|
|Die cutting precise||+/-1.5mm||+/-1.5mm||+/-1.5mm||+/-1.5mm||+/-1.5mm|
1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by electric control
2 The air volume adjusted by manual according to different cardboard
3 Dedust system help remove the dust of cardboard surface to make the printing better
4 All the roller intervals are manual or electric control
1 Roller transfer or vacuum transfer for option
2 Doctor blade chamber or rubber roller ink distribution for option
3 Ceramic anilox roller or steel anilox roller for option
4 Rollers intervals adjusted by manual or electric control
5 All the rollers are precisely grinded and plated with rigid chrome
5 Automatic zeroing
6 Automatic reposition after washing the printing plate during printing
7 Automatic ink washing system for option
1 Precreasing wheel, creasing wheel and second creasing wheel make the creasing line formed well
2 Creasing wheel and slotting holder horizontal moving under PLC and touch screen control
3 Slotting holder moving via screw axle and linear guide rail
4 Single or double shaft slotting structure for option
5 Rollers interval adjusted by manual or electric control
1 Max stacking height 1600mm
2 Chain driving or hydraulic driving for option
3 Safety device installed to avoid the collection cabinet drop suddenly
4 Good quality convey belt for long time service
