2 Color Automatic Flexo Printer Slotter Machine

The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Amy

I'm Online Chat Now

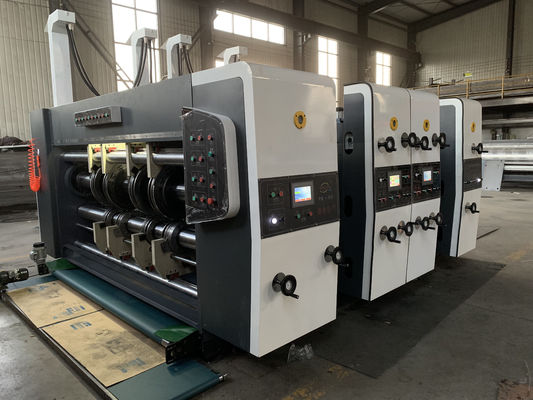

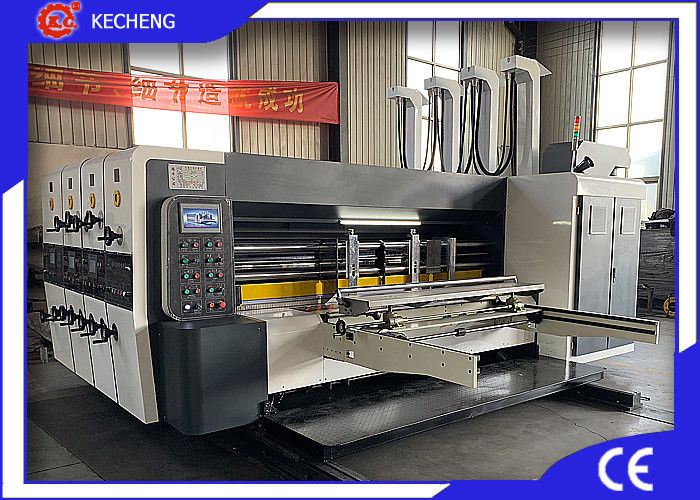

2 Color Automatic Flexo Printer Slotter Machine

2 Color Automatic Flexo Printer Slotter Machine
2 Color Automatic Flexo Printer Slotter Machine 2 Color Automatic Flexo Printer Slotter Machine 2 Color Automatic Flexo Printer Slotter Machine 2 Color Automatic Flexo Printer Slotter Machine

Large Image :  2 Color Automatic Flexo Printer Slotter Machine

Product Details:
Place of Origin: China
Brand Name: KECHENG
Certification: CE certification
Model Number: KC-H618/920/1224/1628/1632
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiated
Packaging Details: Plastic film packaging and cartons
Delivery Time: 65 working days
Payment Terms: L/C,TT
Supply Ability: 200 sets per year
Detailed Product Description
Condition: New Application: Corrugated Carton Printing Slotting
Type: Units Mobile Bearings: HRB,NSK,NTN OR SKF
Speed: 150pcs/min Gears: 20 CrMnTi
Anilox Roller: Steel And Ceramic Power: 380v,50Hz
Transfer: Roller Transfer Ink: Water Ink
High Light:

flexo printer slotter machine

,

automatic flexo printer slotter

,

2 color flexo printer slotter

Automatic Flexo 2 Color Top Printing Printer Slotter Machine



Design according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
All of drive rollers are made of high steel, hard chrome plated the surface with grinded.
Drive gears adopt high quality steel with heat treatment with grinded.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
Engineer oil automatic balance device, keep the oil level equal in each unit.
Phase adopts electric digital adjusting with “automatic zero return” and memories “function (options: PLC control touch screen)
Feeding type use lead edge or kick feeding.



2 Color Automatic Flexo Printer Slotter Machine 0

Technologic parameter



Model KC-H920 KC-H1224 KC-H1628
Max feeding size 900*2100mm 1200*2500mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 450*750mm
Max printing size 880*1000mm 1150*2400mm 1550*2800mm
Skip feeding size 1100*2100mm 1400*2500mm 1800*2900mm
Max speed 250pcs/min 180pcs/min 150pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm
Min slotting gap 250*70*250*70m 270*80*260*80mm 280*100*280*100mm
Slotting precise +/-1.5mm +/-1.5mm +/-1.5mm
Die cutting precise +/-1.5mm +/-1.5mm +/-1.5mm



FEATURES





Feeder unit



Adopts lead edge feeding system. Adjust wind volume according on cardboard bending degree to ensure feeding paper smoothly.
Main motor start protecting device, when the machine units not be clocked, machine can not run.
Continuous and skip cardboard feeding options.
Double feeding rubber roller, the rubber roller has slot for prevent the overlarge pressure.
Front feeding rubber roller with air cylinder cushioning device, feeding accurately and stable, will not destroy the hardness of the cardboard when the feeding space is small.
The side baffles adopt electric digital control.(can add automatic or pneumatic aligning device) . The back baffle box be adjusted by motorized, the front baffles space adopts manual adjustment.
With brush dust-remove device with dust-absorption blower. Can adjust the wind volume accord the cardboard size.
Electric control units separation with warming belt, to ensure worker safe.
Electric counting device set production quantity, when complete the production automatically warm (if use touch screen control, adjust quantity though touch screen directly)



Printer unit



The printing roller adopt stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly.
With quickly change printing plate device, when load or unload printing plate, foot switch electric control roller run clockwise or anticlockwise.
The feeding roller, impression roller, rubber roller and anilox roller space adjusted by self-locking device.
Printing and phase fixed device, pneumatic brake. When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position.
The anilox roller adopt automatic pneumatic up-down device(when feeding, anilox roller down automatically according to order, when stop, anilox roller lift according order)
Adopts pneumatic diaphragm pump inking, automatically recycle, water cleaning.
With clean printing plate memory function, after washing the printing plate, the printing roller will back to the original printing position.

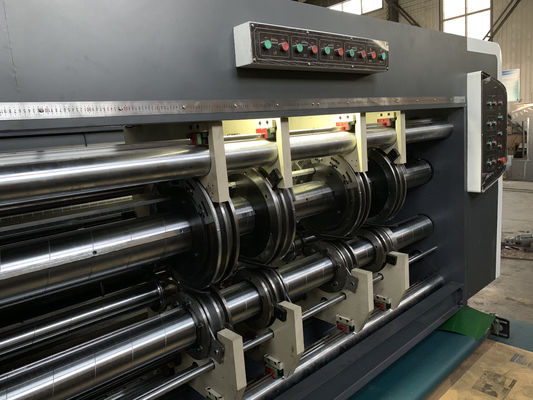

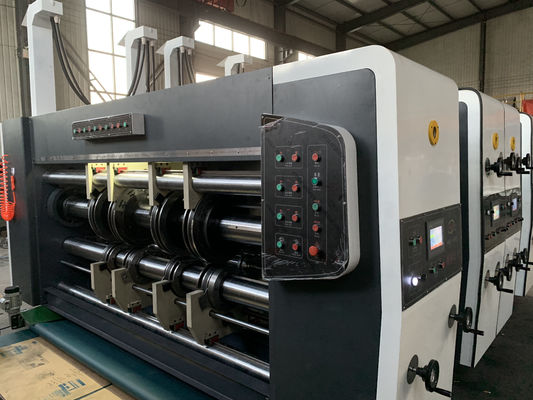

Slotting unit:



With pre-creasing wheels, after pre-creasing cardboard not easy destroy.
Single shaft double slotting knife, carton box height adjusting adopts PLC and digital control.(or adopt PLC and touch screen adjusting )
Slotting phase adopt PLC and digital adjustment in360 degree whatever running and stop .(or adopt PLC and touch screen adjusting )
Slotting pedestal and creasing wheels horizontal moving adopt electric synchronous adjustment. .(or adopt PLC and touch screen adjusting )
Creasing space and knife roller space adjusting adopts self-locking device.
The carton height adjustment with anticollision device for the slotting knives, will not destroy the machine.
Every slotting knife pedetals movement with anticollision device(digital type)
Slotting knives width is 7mm, alloy steel with heat treatment, grinding, saw tooth knives. Double type cutting knives, sharp-edged and high precision.
The hole an handle hold die is option.
