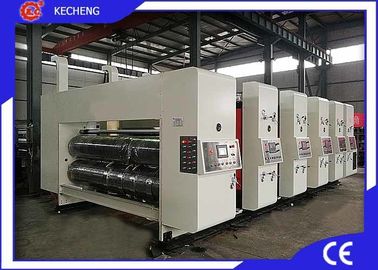

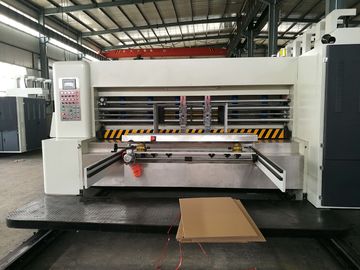

CE Certification Automatic High Speed Carton Box 4 Color Flexo Printer Die Cutter Machine
Automatic 4 Color Flexo Printer Die Cutter Machine With Stacker used for corrugated carton box making companies, 1) the machine has roller transfer printing unit and vacuum transfer printing unit for option .2) All the roller interval adjusted by manual or electric control 3) rubber roller ink distribution and Doctor blade chamber ink distribution for option. 4)All the rollers, gears and main parts undergoes precise treatment to make sure running stable and printing precise.5)easy to operate and maintain.6)Speed:180-350pcs/min according to different cardboard size.
Technologic parameter
Model | KC-H618 | KC-H 920 | KC-H1224 | KC-H1628 | KC-H1632 |
Max feeding size | 600*1900mm | 900*2100mm | 1200*2500mm | 1600*2900mm | 1600*3300mm |
Min feeding size | 220*600mm | 300*650mm | 400*720mm | 450*750mm | 450*750mm |
Max printing size | 550*1800mm | 880*1000mm | 1150*2400mm | 1550*2800mm | 1550*3200mm |
Skip feeding size | 800*1900mm | 1100*2100mm | 1400*2500mm | 1800*2900mm | 1800*3300mm |
Max speed | 350pcs/min | 300pcs/min | 250pcs/min | 180pcs/min | 180pcs/min |
Registering | +/-0.5mm | +/-0.5mm | +/-0.5mm | +/-0.5mm | +/-0.5mm |
Min slotting gap | 240*60*240*60mm | 250*70*250*70m | 270*80*260*80mm | 280*100*280*100mm | 280*100*280*100mm |
Slotting precise | +/-1.5mm | +/-1.5mm | +/-1.5mm | +/-1.5mm | +/-1.5mm |
Die cutting precise | +/-1.5mm | +/-1.5mm | +/-1.5mm | +/-1.5mm | +/-1.5mm |
Feeding unit
★ Separating and combining of machine
※ Separating and combining of the machine and platform undergo electric control added with alarm which rings consecutively during running to ensure worker’s safety
※ Transmission axle with fricti
on clutch to avoid damaging machine caused by error operation.
★ Leading edge feeding system
※ Air volume can be adjusted according to the different conditions of the bending paper to ensure smooth feeding.(valve to control the air volume)
※ The positions of side baffle, and back baffle box are adjusted by electric (numerical) control with hand adjustment of leading baffle interval.
★ Dedusting facility
※ Upper air draft dust adsorption facility with brush equipped on the exhaust inlet so as to weed out impurity on the printing surface of paper in a great deal to improve the printing quality.
★ Feeding roller
※ Upper feeding roller seamless steel covered with wear-resistant rubber treated by balance rectification
※ Down feeding roller seamless steel pipe is plated with chrome and grinded surface
※ Feeding roller interval dial is adjusted by manual control in an adjustable range from 0 to 12mm.
★ Automatic zeroing facility
2 Printing Unit
★ Printing roller
※ Steel pipe is plated with rigid chrome and grinded surface
※ Treated by balance rectification to realize running stability.
※ Ratchet wheels fixed plate axle
※ Complete board and hanging board groove
※ Horizontal movement is controlled by electric numerical adjustment of 10mm
★ Printing pressing roller
※ Steel pipe is plated with rigid chrome and grinded surface.
※ Treated by balance rectification to realize running stability.
※ Printing roller interval dial is adjusted by manual control in an adjustable range from 0 to 12mm.
★ Feeding roller
※ Upper roller: thick steel pipe equipped with three feeding rings.
※ Down roller: thick steel pipe plated with rigid chrome and grinded surface
※ Feeding roller interval dial is adjusted by manual control in an adjustable range from 0 to 12mm.

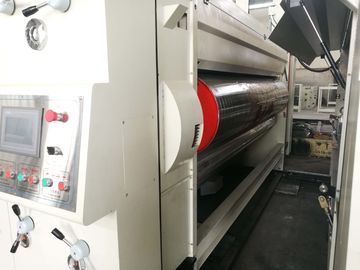

★ Ceramic anilox roller
※ Steel pipe is plated with ceramic grinded surface and laser-carved anilox
※ More wear-resistant than steel anilox roller with longer service life
※ Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
※ Anilox roller added with wedge-shaped super clutch makes distributing and washing ink more convenient.
★ Rubber roller
※ Steel pipe is covered with wear-resistant rubber and treated by balance rectification.
※ Rubber is specially grinded in medium and high grade with excellent distributing effect.
★ Circulation of water ink
※ Pneumatic diaphragm pump realizes stable ink supplies and simple operation and maintenance.
※ Oil filter screen can filtrate impurity.
※ Plastic ink groove
★ Facility of fixing printing phase
※ Cylinder brake structure.
※ During separating and combining the machine or adjusting phase ,the brake structure restrains running of the machine to keep gear position unchanged
3 Slotting Unit (for option)
★ Creasing device
※ Creasing roller plated with rigid chrome and grinded surface,with stable movement.
※ Treated with balance rectification to realize stable running.
※ Creasing roller interval dial runs manual adjustment in an adjustable range from 0 to 12mm.
★ Horizontal adjustment structure of slotting knife holder
※ Axle plated with rigid chrome and grinded surface with stable movement.
※ Slotting width reaches 7mm
※ Alloy steel slotting knife grinded into gear shape after heat treatment features excellent rigidity and toughness
※ Alloy steel double-blade trimming knife after heat treatment with sharp edge can make high precision
※ Slotting knife holder and creasing roller horizontal moving position is under PLC control.
※ 8 Screw bars structure to ensure the horizontal moving precise
★ Slotting phase adjustment structure
※ Planetary gear structure
※ Slotting phase adopts PLC, touch screen control and electric numerical inverter adjustment of 360o.(running and stopping can be adjusted)
★ Operational control switch
※ Control panel is equipped with a touch screen of 10 inch,able to control the units of feeding ,printing and slotting with convenient operation.
4 Stacker Machine
★ Sheet laying arm
※ Option for manual or automatic operation
※ Independent tension adjustment of transmission belt of sheet laying arm is not limited by the equal length of belts.
★ Lifting of machine
※ Driven by mighty chain
※ Height of piling is 1600mm.
※ Machine lifting transmission motor added with brake realizes the fixed position of machine bed without sliding.
※ Added with safety facility to control the lifting of machine and secure the worker.
★ Sheet laying baffle
※ Pneumatic sheet laying baffle automatically reaches out to receive and support paperboard when the piled paperboard reaches the height preset
※ Back baffle position is adjusted by manual control.
