Dongguang Kecheng Machinery Manufacturing Co. LTD
Home ProductsPrinter Slotter Die Cutter

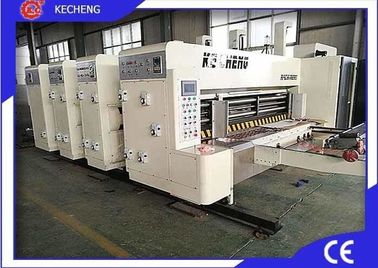

Two Color Corrugated Flexo Printing Machine

The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Amy

I'm Online Chat Now

Two Color Corrugated Flexo Printing Machine

Two Color Corrugated Flexo Printing Machine
Two Color Corrugated Flexo Printing Machine

Large Image :  Two Color Corrugated Flexo Printing Machine

Product Details:
Place of Origin: CHINA
Brand Name: KECHENG
Certification: CE
Model Number: KC-M1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Plastic film packaging and cartons
Delivery Time: 65 working days
Payment Terms: L/C,TT
Supply Ability: 200 sets per year
Detailed Product Description
NAME: Bottom Printing Printer Gluer In Line Max Feeding Size: 1200*2500mm
Min Feeding Size: 400*720mm Max Printing Size: 1150*2400mm
Skip Feeding Size: 1400mm*2500mm Max Speed: 120pcs/min
High Light:

computer controlled die cutter

,

flexo printing and die cutting machine

1224 Lead Edge Feeding 2 Color Corrugated Carton Box Making Machine Flexo Printer Slotter





Technologic parameter



Model KC-M920 KC-M1224 KC-M1228 KC-H 1628
Max feeding size 900*2100mm 1200*2500mm 1200*2900mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 400*720mm 450*750mm
Max printing size 880*2000mm 1150*2400mm 1150*2800m 1550*2800mm
Skip feeding size 1100*2100mm 1400mm*2500mm 1400*2900mm 1800*2900mm
Max speed 150pcs/min 120pcs/min 120pcs/min 100pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm +/-0.5mm



All the gears are made of steel or 20 CrMnTi for option ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing has HRB,NTN,NSK for option



Printer unit

Two Color Corrugated Flexo Printing Machine 0

1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by manual control

2 Roller transfer

3 Doctor blade chamber or rubber roller ink distribution for option

4 Ceramic anilox roller or steel anilox roller for option

5 Feeding rollers interval adjusted by manual control

6 Automatic zeroing

7 Printing rollers circular moving by electric control



Slotter unit

Two Color Corrugated Flexo Printing Machine 1

1 Precreasing wheel and creasing wheel wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under manual control(electric control for option)

3 Slotting knife circular moving by manual or electric control

4 Single or double shaft slotting structure for option



Stacker

Two Color Corrugated Flexo Printing Machine 2

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option



Exhibition



Two Color Corrugated Flexo Printing Machine 3 Two Color Corrugated Flexo Printing Machine 4

Two Color Corrugated Flexo Printing Machine 5 Two Color Corrugated Flexo Printing Machine 6



Customer

Two Color Corrugated Flexo Printing Machine 7 Two Color Corrugated Flexo Printing Machine 8

Two Color Corrugated Flexo Printing Machine 9 Two Color Corrugated Flexo Printing Machine 10





About US


Dongguang Kecheng Machinery Manufacturing Co.,Ltd.(K.C.), established in 1999, which is committed to supplying the good quality carton machines to the clients all over the world.



K. C. is specialized in various carton printing machinery to meet the diversified demand from the clients. Here are Top Printing Printer Gluer Inline ,Top Printing Printer Slotter Die Cutter, Bottom Printing Printer Gluer Inline,Bottom Printing Printer Slotter Die Cutter,Folder Gluer, Stitching Machine for option,no matter roller transfer or vacuum transfer, rubber roller with ceramic anilox roller or doctor blade chamber with ceramic anilox roller, any kinds of machine will get the quality guarantee before delivered out of our company.



K.C uses the techlogic management to make all the procedure go well, so we can respond to clients needs rapid under the support of the experienced and professional team. ONE STOP solution service makes the clieints business easier.Thanks to the integraty of the service, manufacturing productivity and product quality, K.C. is growing by building the solid partner with clients and suppliers.In order to make sure the machine quality, the manufacturing standard must be complied with our company standard which beyond the common industrial standards. All the parts purchased are from the ourstanding and experienced supplier.





The goal we pursue is to be the trusted quality supplier in the carton machiney field for years and believe the following competitive strengths enable us to capitalize on the growth opportunities :



• Good quality machines with high performance and stability;



• Rapid repond to clients needs with precision and affciency



• Making sure all the parts qualified with long life service and secure;



• Manufacturing the easy-operation machine with capacity and utilization;



• Keeping the promises we make with honesty and sincerity.



K.C. will continue to focus on how to make the machine more technologic and efficient. We deeply undertand the world is changing so fase, we also change our thought and improve our design and technology to make sure the the machine can increase the profit for the clients



Your success is our horner, expect to cooperate with you soon



History





1999 Dongguang Kecheng Machinery Manufacturing was established, which is comitted to supply the affordable carton machinery to the market



2000 The new workshop building finished,K.C. manufactured the first KC-L1224 Chain Feeding Carton Printer Slotter which sold to domestic clients Zhejiang Prov.



2001 K.C. carton machine became the best seller in Zhejiang area,we manufactured KC-L 1428 KC-L 1630 Chain Feeding Printer to meet the clients need



2003 K.C. obtain the Outstanding Contribution Award issued by government



2005 The second workshop was built to increase our manufacturing capacity to meet the increasing needs in the market



2007 Manufactured the first set of KC-M 1224 Automatic Lead Edge Feeding Printer Slotter, max speed 100pcs/min, makes our clients production capacity enhanced



2008 Extended the carton models,KC-M 1228,KC-1628,KC-M1630 were manufactured



2009 The first of KC-H1224 Automatic Lead Edge Feeding Printer Slotter show up in our factory,max speed 200pcs/min,improved the working efficienty too much



2010 K.C. acquried CE Certification form European Union to prove the machine quality and standard



2011 Our carton machines were exported to Thailand,Cezch, Russia, Malaysia,Vietnam,Middle East etc more than 20 countries



2017 Manufactured the first set of KC-PG 1224 Bottom Printer Slotter Gluer Inline, max speed 200pcs/min, roller transfer or vacuum transfer for option,which makes the clients carton business easier, from cardboard to carton just need one time,high performance, no fishtail.



2018 Took part in Shanghai Sino Corrugated Expo.to show our KC-PG Bottom Printer Slotter Gluer Inline, keep running stable, good printing and finished carton without fishtai.so we got much more attention from the clients



2019 KC-PG 1228 Vacuum Transfer Bottom Printer Gluer Inline manufactured exported to Turkey.KC-PG 1228 Roller Transfer Bottom Printer Gluer Inline manufactured exported to domestic client



Our Service





Free Pre-Sales Consulting



K.C.Machinery offers 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.

We offer suitable solution to all the distributor and users.



Strict Quality Control of Production



We have the professional and experience QC team and setup a complete & strict quality control system, from design check to parts examination, which ensures the excellent quality of our machines.



On Time Delivery



We will manufacture the machines according to the working schedule complied with the contract and QC will check every process everyday to ensure the machines can be finished and tested on time then delivery to the clients.



24 Hours After-Sales Service



Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.



Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.



Spare parts: necessary spare parts are provided together with products to customers.



Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.



Installation and training: service of installation and training are available.



For more detailed information on our carton machines, please feel free to contact us. Welcome to company for visitation , and look forward to cooperating with you.



Our Team





K.C. as the professional carton machinery manufacturer, we have 20 years experience in this field.



Here are 85 staff in our company:



1 top mechanical egineer 3 assistant mechanial engineers



1 top electric engineer 3 assistant electric engineers



1 production manager 2 deputy production managers



3 QC(Quality control staff) 2 purchasing staff



and the experienced technical staff



Our CEO Mr Zhang, working in carton machinery field more than 30 years, who knows the machins too much. So our machines improving year by year to meet the virious needs from the clients undertand the lead of Mr Zhang and alll the staff work together with heart



K.C. Team always on the side of our clients to help them make the business easily and efficient. We are willing to be your support at any time.
