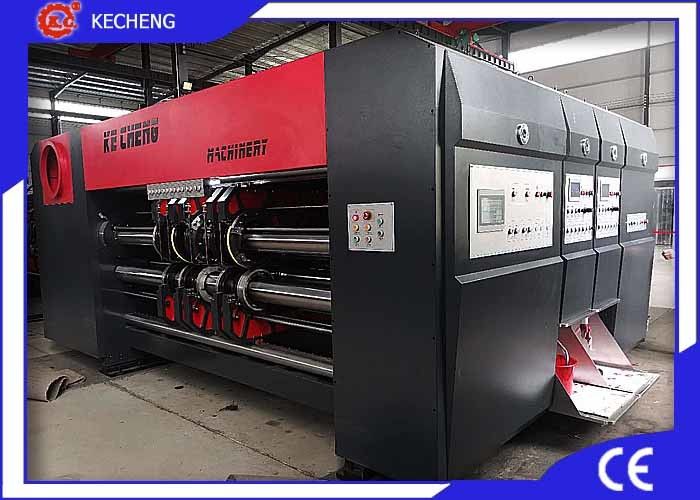

12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic

12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic
12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic

Large Image :  12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic

Product Details:
Place of Origin: China
Brand Name: KECHENG
Certification: CE certification
Model Number: KC-D/920/1224/1228/1632
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiated
Packaging Details: Plastic film packaging and cartons
Delivery Time: 65 working days
Payment Terms: L/C,TT
Supply Ability: 200 sets per year
Detailed Product Description
Name: Automatic Flexo Printer Slotter Machine Application: Carton Printing Slotting
Cardboard Type: Corrugated Cardboard Cardboard Thickkness: 2-12mm
Speed: 200pcs/min Gears: 20 CrMnTi
Slotting Knife: 9Crsi Or SKD Bearing: NSK,NTN,SKF
Anvil Cover: Depair Or Maxdura Operation: Automatic
High Light:

12mm Flexo Printer Slotter Machine

,

Corrugated Flexo Printer Slotter Machine

,

Cardboard Flexo Printer Slotter Machine

Corrugated Cardboard Printing Automatic Flexo Printer Slotter Machine



Corrugated Cardboard Printing Automatic Flexo Printer Slotter Machine used for corrugated carton  making companies



1) Automatic control ,save labor time

2) high speed 220pcs/min.

3) Vacuum transfer at printing unit .

4) Doctor blade chamber ink distribution .

5) All the rollers, gears and main parts undergoes precise treatment to make sure running stable and printing precise.



Flexo printer slotter machine as the important machine for making the carton, we have different models for choice. Automatic  high speed,semi automatic,vacuum transfer ,roller  transfer, no matter what kind of machine, we will  give one  year quality gurantee.





Technologic parameter of printer slotter machine



Model KC-D 920 KC-D1224 KC-D1632
Max feeding size 900*2100mm 1200*2500mm 1600*3300mm
Min feeding size 300*650mm 400*720mm 450*750mm
Max printing size 880*1000mm 1150*2400mm 1550*3200mm
Skip feeding size 1100*2100mm 1400*2500mm 1800*3300mm
Max speed 300pcs/min 220pcs/min 180pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm
Min slotting gap 250*70*250*70m 270*80*270*80mm 280*100*280*100mm



FEATURES

Flexo Printer Slotter Machine all the gears are made of 20 CrMnTi ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing are NSK or NTN from Japan, SKF from Sweden

Automatic ink washing and ink shortage alarm system

Vacuum transfer

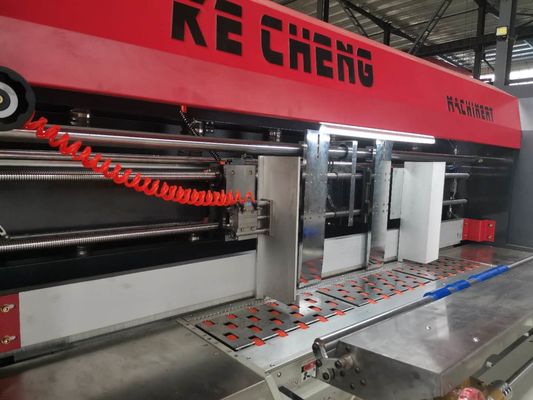

Feeder unit

12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 0

• Continuous feeding and skip feeding are available.
• Vacuum suction leading edge feeder make the all the flute cardboard and wrapped cardboard feed smooth.
• PU feeding wheel are wear-resisting
• Linear guide rail and screw shaft make the baffle easily and accurately.
• All gap adjustment adjusted by electric control.
• Dedust suction blower remove the dust on the surface of cardboard
• Main motor and blower adjusted by inverter control

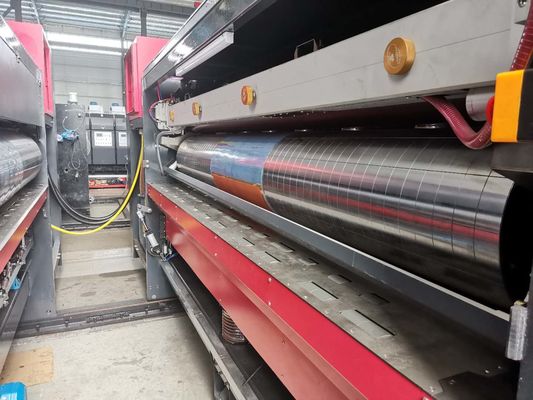

Printer unit

12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 1

• Top printing,vacuum transfer
• Rollers plated with rigid chrome,grinded surface  and undergoes balance treatment
• Doctor blade with ceramic anilox roller ink distribution
• Close type doctor blade system and innovated ink-closed design to make the ink distribution very well, save ink.
Pneumatic lock, doctor blade compensition structure to make the ceramic roller touch with doctor well for good ink distribution effect.
Automatic reposition after washing the printing template during the printing procession
.
Automatic ink washing system
.



Slotter unit



12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 2

Double shaft slotting unit consists of pre creasing wheel, first slotting, creasing wheel and second slotting
Creasing wheel with PU Plated for good creasing and avoiding paper crack
• Auto zero- set for slotting knife with one push button.
Pre creasing roller and creasing roller gap adjusted by touch screen control

Cast steel slotting guide plates makes slotting precise and never damage the slotting knife.
All the knives move and slotting holder move adjusted by PLC control





12mm Corrugated Cardboard Flexo Printer Slotter Machine Automatic 3
